ACCESSORY CATALOG · Light Transmitting Panels
Corrugated Light Transmitting Panel - Non Reinforced
Corrugated Light Transmitting Panel - Non Reinforced. A light transmitting panel for introducing daylight through a compatible building panel assembly. Coordinate its profile, dimensions, support, and fastening with the surrounding metal panels and the required safety controls. Choose color / finish, gauge, and length for your project.
Part: 81.1568

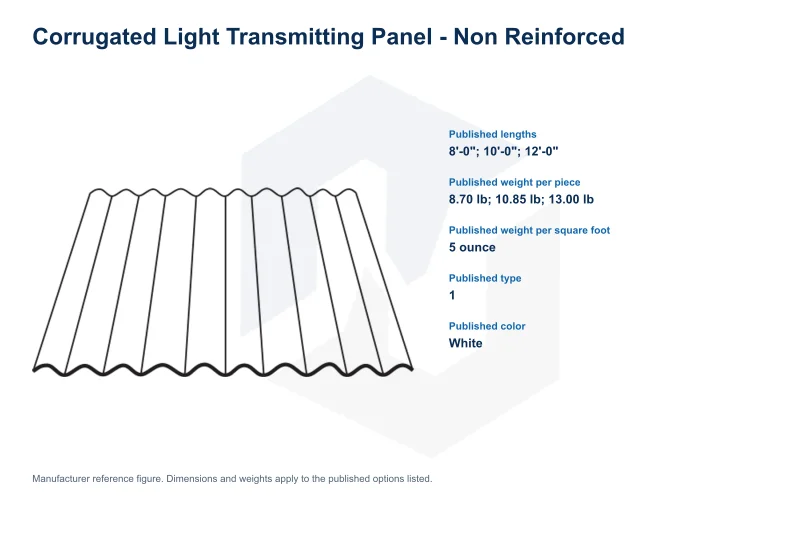

1 / 3 · MBCI published product reference figure. The shown finish and configuration are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Confirm the price basis, specifications, and availability before ordering.
Published product details
- Published lengths
- 8'-0"; 10'-0"; 12'-0"
- Published weight per piece
- 8.70#; 10.85#; 13.00#
- Published weight per square foot
- 5 ounce
- Published type
- 1
- Published color
- White
Supplier specifications
| Part # | Length | Color | Type | Weight/Sq Ft | Weight Each |
|---|---|---|---|---|---|
| HW-1568 | 8'-0" | White | 1 | 5 ounce | 8.70# |
| HW-1570 | 10'-0" | White | 1 | 5 ounce | 10.85# |
| HW-1572 | 12'-0" | White | 1 | 5 ounce | 13.00# |
Light transmitting panels require appropriate controls to prevent falls through the panel. Confirm the applicable installation and safety requirements; the panel is not a walking surface.
Product resources
Request current drawings and installation instructions for your selected product.
- Confirm the physical unit for thickness code 05/08. It does not establish steel gauge or weight in ounces per square foot.
Product visualization. Some details are approximate; confirm specifications for your application.
