ACCESSORY CATALOG · Bolts and Washers
Bolt with Nuts
0 ratings0 recorded purchasers
Bolt with Nuts. Bolted connection hardware for building assembly details. Match the bolt dimensions, thread, nuts, and washers to the hole layout and the specified connection requirements. Choose color / finish, size, and type for your project.
Part: 9300-1232900

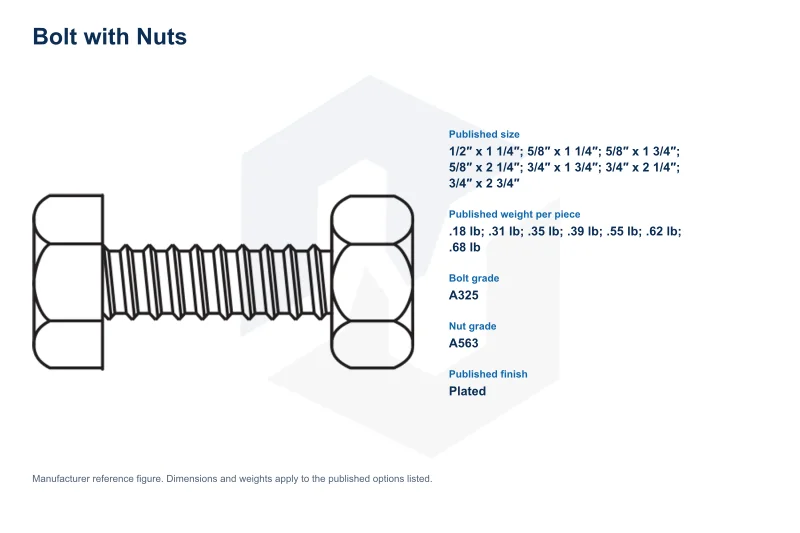

1 / 3 · MBCI published product reference figure. The shown finish and configuration are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$0.71/1 piece
per 100 pieces
Confirm current price and availability before ordering.
Price recorded
Published product details
- Published size
- 1/2″ x 1 1/4″; 5/8″ x 1 1/4″; 5/8″ x 1 3/4″; 5/8″ x 2 1/4″; 3/4″ x 1 3/4″; 3/4″ x 2 1/4″; 3/4″ x 2 3/4″
- Published weight per piece
- .18#; .31#; .35#; .39#; .55#; .62#; .68#
- Bolt grade
- A325
- Nut grade
- A563
- Published finish
- Plated
Supplier specifications
| Part # | Size | Bolt Grade | Nut Grade | Finish | Weight Each |
|---|---|---|---|---|---|
| HWF-363 | 1/2″ x 1 1/4″ | A325 | A563 | Plated | .18# |
| HWF-3544 | 5/8″ x 1 1/4″ | A325 | A563 | Plated | .31# |
| HWF-3545 | 5/8″ x 1 3/4″ | A325 | A563 | Plated | .35# |
| HWF-3547 | 5/8″ x 2 1/4″ | A325 | A563 | Plated | .39# |
| HWF-359 | 3/4″ x 1 3/4″ | A325 | A563 | Plated | .55# |
| HWF-360 | 3/4″ x 2 1/4″ | A325 | A563 | Plated | .62# |
| HWF-361 | 3/4″ x 2 3/4″ | A325 | A563 | Plated | .68# |
Product resources
Request current drawings and installation instructions for your selected product.
Product visualization. Some details are approximate; confirm specifications for your application.
